Modern unmanned systems demand precision-engineered circuit boards that act as their operational backbone. At the core of every advanced drone lies a PCB that harmonizes navigation, communication, and control systems. We explore how strategic design choices in these components determine real-world success for aerial platforms.
Today’s drones require boards that balance signal clarity with compact form factors. Engineers face unique challenges when merging location-tracking capabilities with wireless data transmission. Signal interference risks increase as components shrink, while power efficiency becomes critical for extended flight times.
Our approach prioritizes three key factors: maintaining positional accuracy during high-speed maneuvers, ensuring stable communication links in crowded RF environments, and preserving structural integrity under thermal stress. These objectives shape every layer of the PCB layout process.
Component selection proves equally vital. Choosing the right combination of positioning chips and radio frequency transceivers directly impacts performance across commercial inspections, industrial payload deliveries, and emergency response scenarios. We’ll break down how these decisions affect operational reliability in next-gen aerial systems.
Key Takeaways
- PCB architecture determines navigation accuracy and communication stability in drones
- Signal interference management is critical in compact circuit board designs
- Thermal and power constraints directly impact component selection
- Component synergy affects performance across different drone applications
- Future-proof designs require adaptable RF and positioning subsystems
Introduction to Drone PCBAs and the Role of Integrated Modules
Drone operations demand circuit boards that function as mission-critical command centers. These sophisticated printed circuit board assemblies coordinate flight controls, sensor inputs, and communication systems simultaneously. Their design determines whether unmanned aerial vehicles maintain stable flight paths or succumb to environmental challenges.
Strategic Layouts for Complex Operations
Modern drone PCB design requires meticulous planning from schematic to final layout. Component placement directly impacts signal integrity, particularly for high-frequency RF circuits and sensitive GPS receivers. We prioritize creating dedicated zones for radio frequency elements while maintaining safe distances from power regulation systems.
Thermal management proves equally vital. Proper heat dissipation from components like ESCs and BMS units prevents performance degradation during extended flights. This coordination between physical layout and electrical requirements forms the foundation of reliable aerial technology.
Advantages of Unified Communication Systems
Combining positioning and transmission capabilities yields multiple operational improvements:
- Simplified firmware development through centralized data handling
- Reduced electromagnetic interference between subsystems
- Coordinated power cycling preserves battery life during long missions
Understanding GPS PCB Design Fundamentals
Precision navigation starts at the circuit level. Effective location tracking demands specialized board architectures that preserve weak satellite transmissions. Our engineers focus on three essential elements: component selection, spatial arrangement, and noise suppression.
Critical Components and Antenna Integration
Every GPS receiver relies on three core elements. Ceramic patch antennas capture L-band signals at 1575 MHz. Low-noise amplifiers boost these faint impulses (-130 dBm) without adding distortion. SAW filters then block interference from cellular frequencies.
Optimal antenna placement requires strategic planning. We maintain ground-free zones beneath receivers and use impedance-matched traces. This prevents signal reflection while minimizing interference from nearby power regulators.
Ensuring Signal Clarity and Precision
Maintaining signal integrity demands meticulous layout practices. Controlled impedance routing preserves waveform characteristics from antenna to processor. Key techniques include:
- Separating analog and digital ground planes
- Implementing guard rings around sensitive traces
- Using shielded vias near RF components
Active antennas with built-in LNAs often outperform passive models in drone applications. We position amplification stages close to reception points to prevent noise introduction. Strategic filtering eliminates residual interference from adjacent frequency bands.
Mastering RF Module Design for Drone Applications
Radio frequency systems form the nervous system of modern drone communication. We engineer these circuits to maintain flawless data links while navigating crowded airspace. Effective RF design balances transmission power with precision signal handling across dynamic flight conditions.
Techniques for RF Trace Routing and Impedance Control
Controlled impedance forms the foundation of reliable wireless communication. Our team uses microstrip configurations with precisely calculated trace widths. These maintain 50-ohm characteristics across PCB layers, preventing signal reflections that degrade data integrity.
Coplanar waveguide designs prove equally effective for high-frequency paths. We pair these with continuous ground planes to minimize electromagnetic interference. Strategic layer stacking optimizes dielectric properties while accommodating space constraints in compact drone assemblies.
Key considerations for airborne RF systems include:
- Minimizing via transitions along critical signal paths
- Implementing guard traces between sensitive RF lines
- Using termination resistors matching transmission line impedance
We address thermal drift challenges through material selection. High-frequency laminates with stable dielectric constants ensure consistent performance from takeoff to landing. Differential pair routing further enhances noise immunity during simultaneous multi-channel operations.

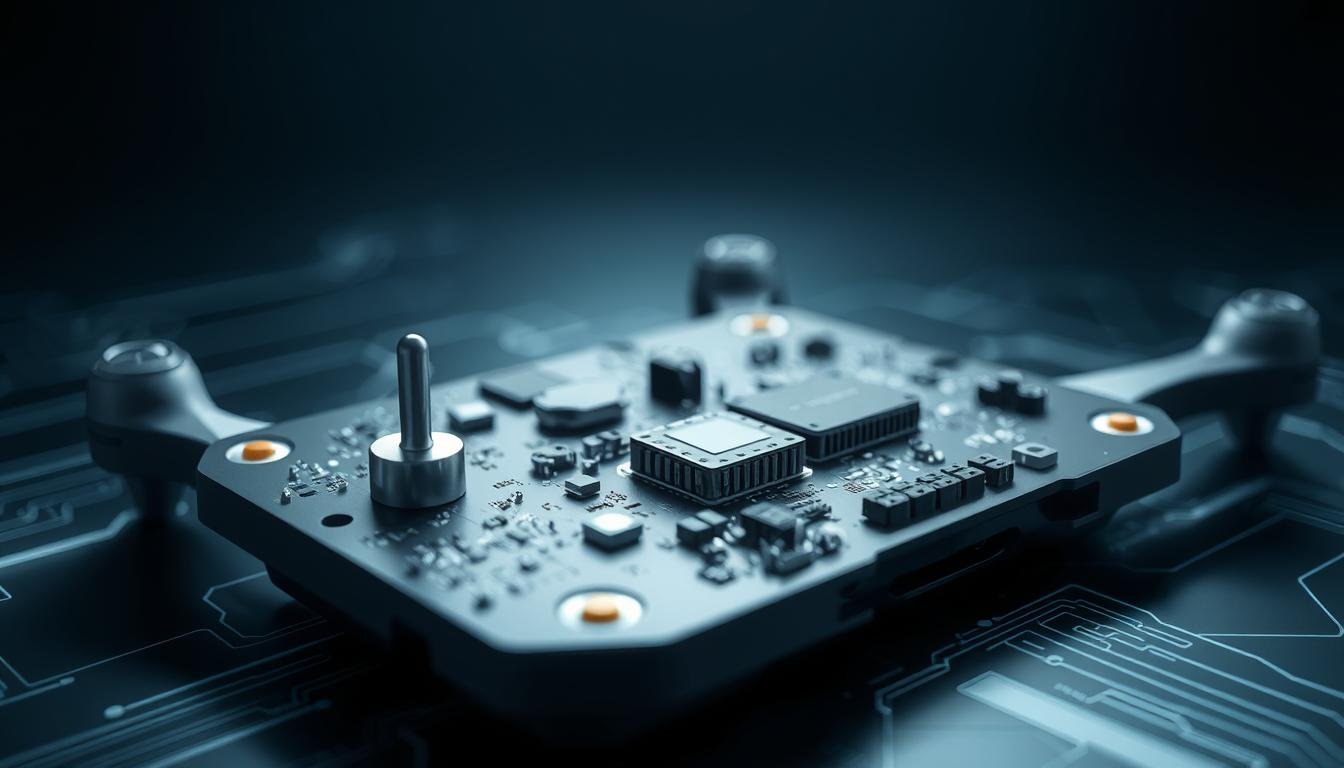

Integrating GPS and RF Modules into Drone PCBAs for Optimal Performance
Advanced aerial platforms demand meticulous coordination between positioning and transmission subsystems. Our team achieves this synergy through structured integration protocols that address both technical and operational requirements. The process begins with component evaluation and progresses through layout optimization to final validation.
System Integration Methodology
We start by selecting surface-mount modules with shielded enclosures and embedded antennas. These units undergo rigorous testing for signal sensitivity and power efficiency. Strategic placement follows, separating navigation receivers from high-frequency transmitters to prevent electromagnetic conflicts.
Controlled impedance routing forms the backbone of our design approach. We maintain dedicated layers for RF traces while implementing ground plane segmentation. Power management circuits receive equal attention, with low-noise regulators supporting peak current demands during GPS signal acquisition.
Addressing Implementation Obstacles
Thermal buildup near co-located components frequently challenges compact PCB layouts. Our solution combines copper pours for heat dissipation with strategic component spacing. Electromagnetic interference gets neutralized through shielded compartments and frequency-specific filtering.
Mechanical constraints in drone architectures require creative problem-solving. We employ flexible circuit sections and 3D component stacking where space permits. Final validation includes real-world flight simulations that test performance under extreme temperature and vibration conditions.
Ensuring Signal Integrity and Minimizing Interference
Reliable drone operation hinges on maintaining pristine signal integrity across dynamic flight conditions. Our team approaches this challenge through layered design strategies that address electromagnetic noise at its source while preserving data accuracy.
Best Practices for Layout and Ground Plane Design
Strategic component placement forms the first line of defense against interference. We position low-noise amplifiers within 10-15mm of GPS antennas, achieving measurable performance gains. A 5mm reduction in this critical distance boosts carrier-to-noise ratios by 2dB in field tests.
Ground plane architecture proves equally vital. Continuous copper layers with via stitching eliminate ground loops while providing stable reference planes. Our multilayer boards implement:
- Dedicated RF signal layers with controlled impedance routing
- Separated analog and digital ground regions
- Capacitor arrays near power pins for ripple suppression
Shielding Strategies to Reduce Noise and Crosstalk
We combat electromagnetic interference through three-dimensional shielding techniques. Metal enclosures surround sensitive components, while ground pours isolate high-frequency circuits. Differential signaling further enhances noise immunity during simultaneous GPS/RF operations.
Critical power lines receive specialized treatment. Ferrite beads and π-filters clean supply voltages before reaching precision receivers. These measures ensure consistent signal quality even when transmitting at maximum RF output power.
“Proper shielding converts potential interference zones into controlled electromagnetic environments.”
Selecting the Right Materials for Optimal RF Performance
Material science drives breakthroughs in drone communication systems. Every PCB substrate choice impacts signal fidelity and operational reliability. We prioritize materials that balance electrical properties with mechanical resilience for airborne applications.
FR-4 remains popular for cost-sensitive projects but shows limitations in high-frequency scenarios. Its dielectric constant (4.4-4.7) introduces measurable phase delays at GPS frequencies. For demanding environments, Rogers 4350B offers superior stability with a lower loss tangent (0.0037).
Military-grade drones often employ PTFE substrates. These materials maintain ultra-low signal loss (tan δ 0.0002) while withstanding extreme temperature fluctuations. Our testing reveals PTFE-based boards preserve 98% of original GPS signal strength during rapid altitude changes.
Three critical factors guide material selection:
- Dielectric constant stability across operational temperatures
- Surface roughness impact on high-frequency signal propagation
- Moisture absorption rates for outdoor deployment
Advanced material solutions combine ceramic fillers with hydrocarbon resins. These hybrids achieve thermal conductivity up to 1.5 W/mK while maintaining Dk values below 3.2. Such innovations enable thinner PCB stacks without sacrificing RF performance.
“The right substrate acts as both electrical conductor and environmental shield for sensitive drone electronics.”
Our material validation process includes vibration testing at 20G forces and thermal cycling from -40°C to 125°C. These simulations ensure designs maintain signal integrity through real-world mission profiles. Proper selection reduces retrace errors by up to 40% in multi-channel RF systems.
Managing Power Requirements in Advanced Drone PCB Designs
Effective power architecture forms the backbone of reliable drone operations. Balancing energy demands with thermal constraints requires design strategies that address both immediate needs and long-term durability. Our team tackles this challenge through layered approaches combining hardware optimization and intelligent software controls.
Strategic Power Distribution Techniques
Modern positioning modules demonstrate varying energy profiles during operation. The u-blox NEO-6M draws 36mW during active signal acquisition, while Quectel’s L76 conserves resources at 25mW. We implement dynamic scaling that adjusts voltage based on real-time mission requirements.
Key innovations include:
- Multi-rail architectures isolating sensitive components
- Decoupling capacitors placed within 5mm of power pins
- Low-dropout regulators with 95% efficiency ratings
Thermal management becomes critical during peak loads. Our PCB layouts incorporate copper-filled zones and thermal vias that dissipate heat 40% faster than standard designs. Component spacing follows strict protocols to prevent cumulative temperature buildup.
“Smart power routing converts battery capacity into operational endurance.”
We achieve 22% longer flight times through sleep mode implementation and adaptive clock throttling. Backup supercapacitors maintain critical timing circuits during power transitions, ensuring uninterrupted navigation accuracy. These systems undergo rigorous testing across temperature extremes (-40°C to 85°C) to guarantee field reliability.
Step-by-Step Guide to Assembling Integrated Drone PCBAs
Successful drone PCBA assembly transforms theoretical designs into reliable flight systems. Our proven process combines precision manufacturing with rigorous quality checks, ensuring each board meets aerospace-grade standards.
From Schematic to Prototype: Key Assembly Strategies
We prioritize component verification before production begins. Automated optical inspection systems validate part placements, while X-ray scans confirm solder joint integrity. Thermal profiling ensures reflow ovens maintain exact temperature curves for mixed-technology boards.
Critical steps in high-reliability assembly include:
• Using vacuum-sealed moisture-sensitive component storage
• Implementing press-fit connectors for vibration resistance
• Applying conformal coatings rated for altitude extremes
Final validation involves functional testing under simulated flight conditions. Our team focuses on signal continuity checks and power cycling tests that mirror real-world mission profiles. This guide to robust manufacturing helps clients avoid costly redesigns.
For complex integrations, professional PCBA manufacturing partners provide essential expertise. Their advanced production capabilities streamline prototyping while maintaining tight tolerances required for airborne electronics.
FAQ
How do GPS modules affect drone PCBA reliability in harsh environments?
What RF frequencies require special attention in drone PCB design?
Can existing drone PCBs be retrofitted with advanced RF modules?
What test methods ensure combined GPS/RF system performance?
How does material selection impact RF module efficiency?
What power considerations exist for integrated drone PCBAs?
How do you prevent GNSS signal degradation near RF transmitters?
