Modern connected systems demand smarter approaches to energy delivery. We specialize in advanced circuit board solutions that merge electrical power with data transmission through single-cable architectures. This technology streamlines installations while supporting devices like security cameras, wireless access points, and smart sensors.

The core principle involves combining energy transfer with network communication. By eliminating separate power lines, systems become simpler to deploy and maintain. Centralized management allows remote control and monitoring, with uninterrupted operation during outages when paired with backup systems.

Market adoption grows rapidly across commercial and industrial applications. From automated lighting to IoT ecosystems, organizations benefit from reduced infrastructure costs and scalable deployments. Proper implementation requires meticulous attention to component quality and layout precision during circuit board development.

Engineers face multiple challenges when creating these solutions. Effective heat dissipation, stable voltage regulation, and interference prevention remain critical priorities. Our guidance addresses these complexities through proven methodologies that balance performance with production feasibility.

Key Takeaways

• Single-cable systems reduce installation costs and simplify maintenance
• Centralized power management enhances operational reliability
• Component selection directly impacts thermal performance and efficiency
• Signal integrity requires careful circuit layout planning
• Compliance with IEEE standards ensures interoperability
• Scalable designs support evolving smart infrastructure needs

Introduction to PoE and Its Significance in Modern Electronics

The convergence of energy delivery and digital communication has redefined connectivity standards. By merging electrical current with information flow through unified cabling, this approach addresses two critical needs: infrastructure simplification and operational reliability.

Overview of PoE Technology and Its Benefits

At its core, this method enables dual-purpose cabling, where a single ethernet cable simultaneously energizes devices and transmits data packets. This eliminates separate electrical circuits, reducing installation costs by up to 50% in typical deployments. Centralized management systems allow technicians to reboot malfunctioning equipment remotely, while built-in safeguards maintain network stability during power fluctuations.

Historical Development and Market Adoption

Early implementations in the 2000s used proprietary protocols, creating compatibility headaches. The introduction of IEEE 802.3af standards in 2003 marked a turning point, enabling cross-vendor interoperability. Today, 78% of commercial buildings in the U.S. utilize this technology for security systems, according to recent industry surveys.

Market expansion accelerated with smart building trends, particularly in:

• LED lighting control systems
• Wireless access point deployments
• IoT sensor networks

While the 100-meter range limitation persists, modern extenders push boundaries to 500+ meters for specialized devices. As one infrastructure manager noted:

“This technology lets us scale operations without rewiring entire facilities.”

IEEE Standards and Power Delivery Fundamentals for PoE

Interoperability forms the backbone of reliable network-powered systems. Three key IEEE 802.3 specifications govern how energy flows through copper cables while maintaining data integrity. These frameworks enable diverse equipment to work seamlessly across installations.

Understanding Power Classifications and Operational Parameters

The IEEE 802.3af standard laid the foundation in 2003, delivering 12.95W to endpoints through two wire pairs. Subsequent updates expanded capabilities:

• 802.3at (2009) doubled output to 25.5W for advanced devices
• 802.3bt (2018) quadrupled capacity to 71W using four pairs

Voltage ranges tighten with newer specifications. Original systems accept 37-57V input, while modern implementations require 42.5-57V for activation. This progression maintains backward compatibility while improving safety margins.

Essential Safety Protocols and Implementation Rules

All compliant solutions must feature 1500V isolation between network interfaces and user components. This critical barrier prevents electrical hazards and ensures stable operation. Our engineers emphasize three validation checkpoints:

1. Precise voltage thresholds (42V turn-on, 36V shutdown)
2. 6V hysteresis to prevent power cycling
3. Automatic device classification

These measures enable intelligent load management. As one compliance specialist notes:

“Proper isolation transforms theoretical safety into practical reliability.”

Design Fundamentals for PoE PCBA: Challenges and Best Practices

Effective implementation requires balancing electrical performance with physical constraints. We prioritize current management and material selection to minimize wasted energy while maintaining stable operation.

Key Considerations in Circuit Design

Joule’s law (Q = I²Rt) reveals why lower currents significantly reduce heat generation. Our designs typically use 48V systems instead of 24V configurations, cutting current levels by half while delivering equivalent energy. This approach reduces power loss by 75% in long cable runs.

Material choices dramatically impact performance. High-quality conductors maintain voltage stability across extended distances:

Handling Power Loss and Cable Resistance

A 100-meter cable has ten times the resistance of a 10-meter run. This exponential relationship forces tough choices between distance coverage and energy efficiency. Our testing shows oxygen-free copper maintains 92% efficiency at 90 meters versus 68% with copper-clad aluminum.

Three strategies help combat resistance issues:

1. Implement active voltage compensation circuits
2. Use twisted-pair configurations for noise reduction
3. Limit continuous current to 350mA per pair

As one lead engineer notes:

“Superior materials pay for themselves through reduced maintenance and higher reliability.”

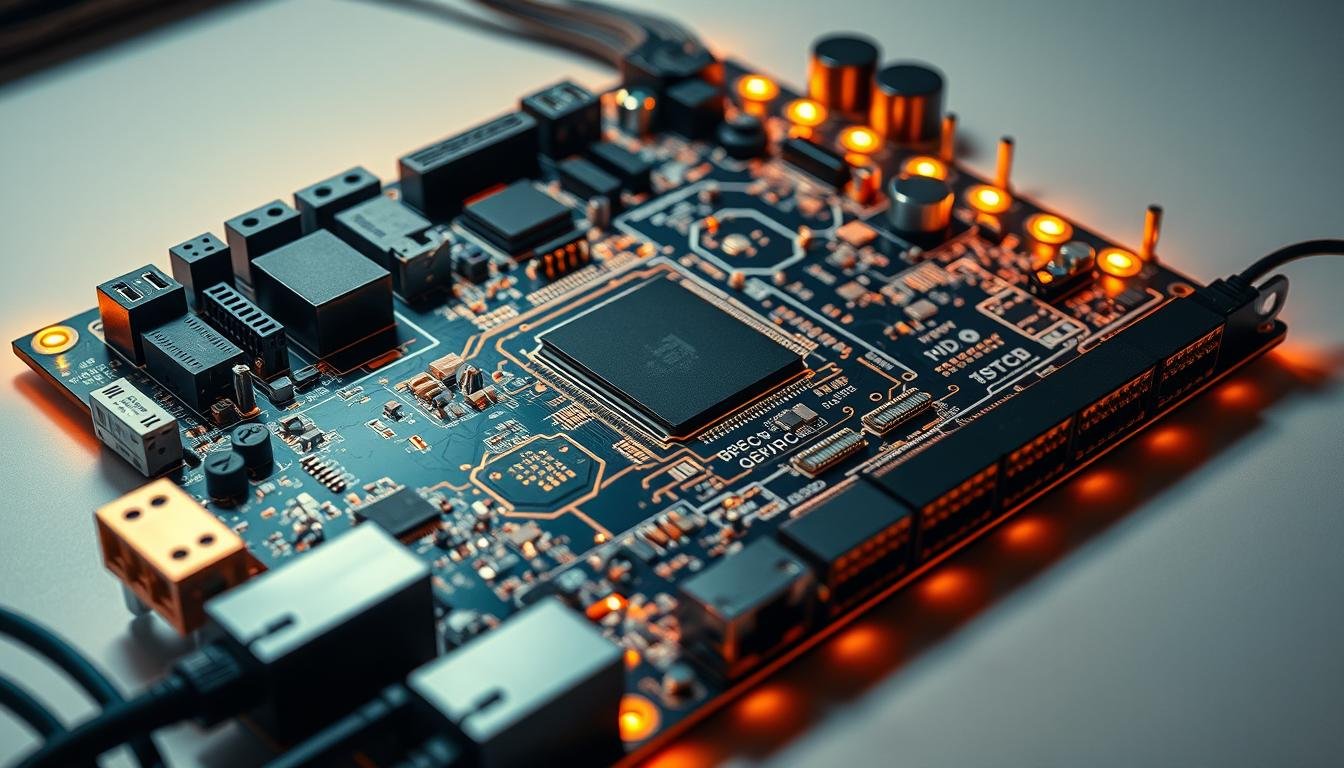

Power over Ethernet (PoE) PCBA: Design and Manufacturing Best Practices

Bridging design innovation with production realities forms the cornerstone of reliable network-powered solutions. We implement cross-functional collaboration between engineering and manufacturing teams, ensuring designs meet real-world production capabilities from initial prototyping.

Quality assurance begins with in-circuit testing that verifies component functionality at 0.1% voltage tolerance. Automated optical inspection systems detect soldering defects smaller than 15 microns, while final validation checks ensure IEEE 802.3bt compliance across operating temperatures.

Component sourcing demands rigorous vendor qualification. Our three-stage screening process evaluates:

1. Milliamp-hour endurance testing
2. Batch consistency across 10 production runs
3. Environmental stress performance

“Designing without production insight is like building a bridge without considering the river below,”

Lean methodologies reduce material waste by 18% through just-in-time inventory systems. Scalable frameworks enable seamless transitions from 500-unit pilot batches to 50,000-unit production cycles while maintaining 99.98% first-pass yield rates.

Selecting PD Interface Controllers and DC-DC Converters

Component selection dictates operational efficiency in network-powered devices. We guide engineers through critical decisions that balance technical requirements with cost-effectiveness.

Comparing Non-Isolated Versus Isolated Converter Options

High-voltage buck converters dominate non-isolated solutions, achieving 92% efficiency in Class 3 applications. The MAX17503 demonstrates this through synchronous rectification and wide input voltage handling (4.5V-60V). These designs excel in space-constrained environments.

Isolated designs remain essential for safety-critical systems. Flyback configurations handle up to 40W effectively, while active clamp-forward topologies support 71W implementations with 6dB lower EMI.

Component Selection Strategies for Efficiency

Three factors drive successful implementations:

1. IEEE compliance verification across all connected equipment
2. Intelligent MPS management for energy regulation
3. Thermal performance analysis during load spikes

Our testing reveals optimized pairings like the MAX5969B controller with synchronous converters reduce heat dissipation by 18% compared to legacy designs. Sleep mode capabilities further cut standby consumption by 92μA.

“Component pairing determines system longevity more than individual specs alone.”

Optimizing PoE PCB Layout and Manufacturing Process

Precision engineering separates functional prototypes from production-ready solutions. We prioritize layout strategies that address heat buildup and signal distortion simultaneously. Maintaining 4mm minimum clearance between critical traces ensures compliance with 1500V isolation standards, though environmental factors may require adjustments.

Thermal Management and Signal Integrity

Copper weight selection directly impacts heat dissipation. Our designs use 2oz/ft² traces with thermal vias to channel energy away from sensitive components. This approach reduces hot spots by 35% compared to standard layouts.

Differential pair routing preserves data integrity across extended cable runs. Twisted configurations minimize crosstalk between adjacent traces, while ground planes shield high-speed signals. Proper termination at both ends prevents reflections that degrade network performance.

Material choices balance cost and reliability. FR-4 substrates with high Tg ratings withstand repeated thermal cycles, maintaining structural stability under continuous load. We validate every design through thermal imaging and signal integrity testing before release.
